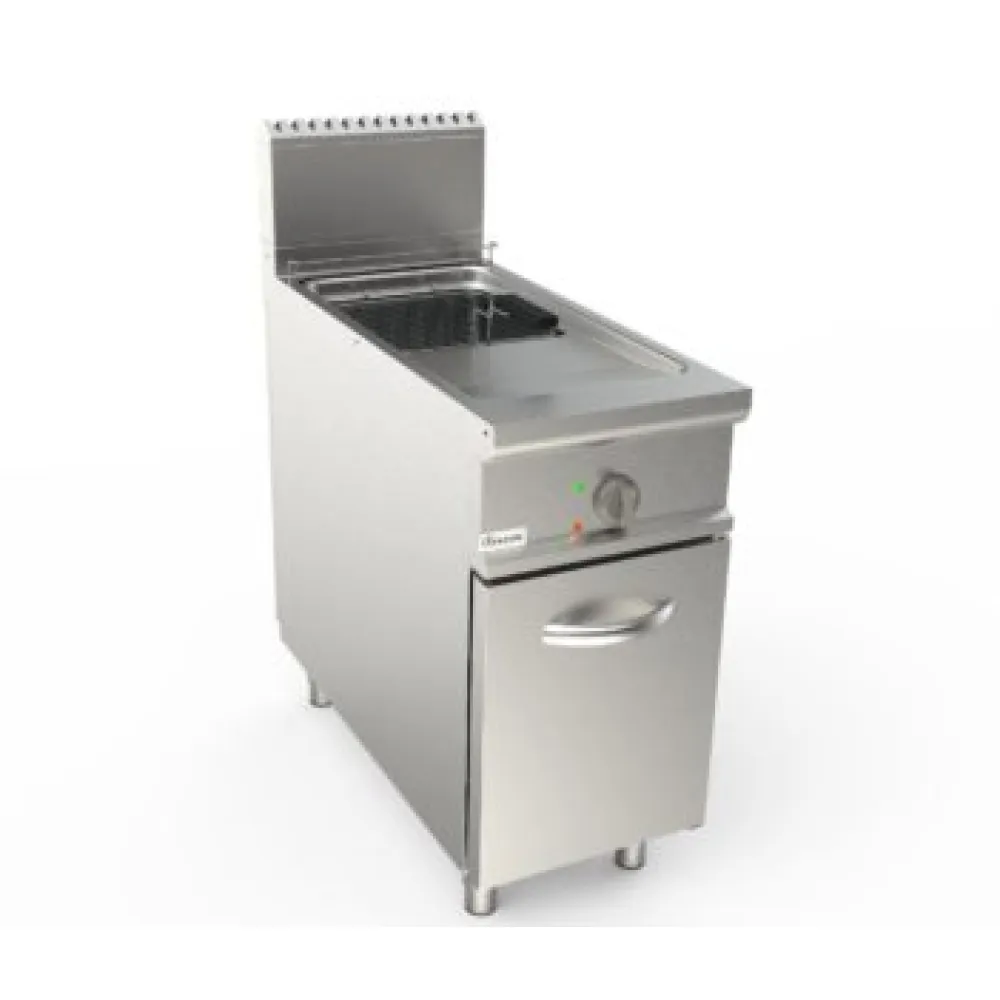

17L Heavy-Duty Gas Fryer with Cabinet Storage

17L Heavy-Duty Gas Fryer with Cabinet Storage
Attributes
ARTICLE LQ/FRG1V17
POWER Gas: 16,0 kW
SIZE W/D/H 400 / 900/ 850 mm
NOTES EXTERNAL heat exchangers Equipped with: baskets, lid and 1 s/s oil draining tank
CAPACITY 17L
gas supply
stainless steel
17L Heavy-Duty Gas Fryer with Cabinet Storage

17L Heavy-Duty Gas Fryer with Convenient Cabinet

  • : CASTA
  • Article number: LQ/FRG1V17
Ir pieejams
2,479.00€
with VAT: 2,999.59€

The unit is constructed from high‑quality AISI 304 stainless steel, which is corrosion-resistant, easy to maintain, and suitable for professional environments. The frying tank with rounded edges ensures uniform oil circulation and simplifies cleaning.

All surfaces in contact with the combustion chamber are coated with vulcanized silicone paint, providing added protection against high temperatures and extending service life. At the bottom of the tank there is a wide zone where food residues accumulate, which can then be easily drained via a chromed brass oil‑discharge tap. The oil is discharged into a steel receptacle with an AISI 304 stainless steel filter, ensuring effective purification and reuse of oil.

Below the tank are steel tubular multi‑gas burners controlled by an electrically actuated gas valve system. This allows complete cleaning of the tank and ensures uniform, precise heat distribution. In addition, the device is equipped with external heat exchangers, which facilitate cleaning and increase efficiency.

To ensure maximum safety and thermal control, the fryer is equipped with two thermostats: a working thermostat that maintains oil temperature around 190 °C, and a safety thermostat which activates if temperature exceeds 235 °C, automatically cutting off gas supply. Both thermostat sensors are located inside the tank and are carefully protected against accidental impacts or damage.

Thermal insulation between the combustion chamber and the outer casing reduces heat losses and improves heat transfer, enabling faster achievement of operating temperature and reducing energy consumption. The mechanical valve and safety thermocouple guarantee approximately 1.0 kW of heat power per liter of oil, allowing the unit to heat rapidly even after filling.

Temperature regulation is handled by a high-precision electric thermostat that controls the gas supply valve and provides an immediate response to any temperature fluctuations, for example when introducing a larger food load.

The fryer is fitted with AISI 304 stainless steel doors with magnetic closure, providing easy access to internal components and secure sealing. It also features adjustable legs, also made of AISI 304 steel, enabling height adjustment and stable installation on various work surfaces.
